Item | Description | mm | ± | Inch | ± |
---|---|---|---|---|---|
A | Outside Body Diameter | 53.098 | 0.01 | 2.0905 | 0.0004 |
B | Factory Finished Can Height | 103.38 | 0.25 | 4.070 | 0.010 |
C | Dome Depth | 9.70 | 0.13 | 0.382 | 0.005 |
D | Neck Plug Diameter | 50.00 | 0.13 | 1.969 | 0.005 |
E | Flange Diameter | 54.54 | max | 2.147 | max |
F | Stand Diameter | 46.36 | ref | 1.825 | ref |
G | Flange Width | 2.10 | 0.20 | 0.083 | 0.008 |
H | Over Flange Radius | 1.55 | ref | 0.061 | ref |
I | Flange Angle | 0-7 | deg | 0-7 | deg |
J | Seaming Clearance | 3.05 | min | 0.120 | min |
K | Neck Angle | 33.0 | deg | 33.0 | deg |
L | Neck Height | 9.80 | ref | 0.386 | ref |
1 | Dome Reversal Pressure (min) | 6.32 | Bar | 93 | PSI |
2 | Axial Load Strength (min) | 85 | KG | 834 | N |
3 | Freeboard | 14.1 | ref | 0.56 | ref |
4 | Brimful Capacity (ml) | 279 | 3 | 279 | 3 |
Item | Description | mm | ± | Inch | ± |
---|---|---|---|---|---|
A | Outside Body Diameter | 53.070 | 0.01 | 2.0894 | 0.0004 |
B | Factory Finished Can Height | 134.09 | 0.25 | 5.279 | 0.010 |
C | Dome Depth | 9.70 | 0.13 | 0.382 | 0.005 |
D | Neck Plug Diameter | 50.00 | 0.13 | 1.969 | 0.005 |
E | Flange Diameter | 54.54 | max | 2.147 | max |
F | Stand Diameter | 46.36 | ref | 1.825 | ref |
G | Flange Width | 2.10 | 0.20 | 0.083 | 0.008 |
H | Over Flange Radius | 1.55 | ref | 0.061 | ref |
I | Flange Angle | 0-7 | deg | 0-7 | deg |
J | Seaming Clearance | 3.05 | min | 0.120 | min |
K | Neck Angle | 33.0 | deg | 33.0 | deg |
L | Neck Height | 9.80 | ref | 0.386 | ref |
1 | Dome Reversal Pressure (min) | 6.32 | Bar | 93 | Bar |
2 | Axial Load Strength (min) | 85 | KG | 834 | KG |
3 | Freeboard | 14.1 | ref | 0.56 | ref |
4 | Brimful Capacity (ml) | 279 | 3 | 279 | 3 |
Item | Description | mm | ± | Inch | ± |
---|---|---|---|---|---|
A | Outside Body Diameter | 66.150 | 0.01 | 2.6043 | 0.01 |
B | Factory Finished Can Height | 115.20 | 0.25 | 4.535 | 0.25 |
C | Dome Depth | 10.92 | 0.13 | 0.430 | 0.13 |
D | Neck Plug Diameter | 52.40 | 0.13 | 2.063 | 0.013 |
E | Flange Diameter | 56.94 | max | 2.242 | max |
F | Stand Diameter | 48.01 | ref | 1.890 | ref |
G | Flange Width | 2.10 | 0.20 | 0.083 | 0.020 |
H | Over Flange Radius | 1.55 | ref | 0.061 | ref |
I | Flange Angle | 0-7 | deg | 0-7 | deg |
J | Seaming Clearance | 3.05 | min | 0.120 | min |
K | Neck Angle | 33.0 | deg | 33.0 | deg |
L | Neck Height | 18.16 | ref | 0.715 | ref |
1 | Dome Reversal Pressure (min) | 6.32 | Bar | 93 | Bar |
2 | Axial Load Strength (min) | 85 | KG | 834 | KG |
3 | Freeboard | 12.2 | ref | 0.48 | ref |
4 | Brimful Capacity (ml) | 356 | 3 | 356 | 3 |
Item | Description | mm | ± | Inch | ± |
---|---|---|---|---|---|
A | Outside Body Diameter | 66.150 | 0.01 | 2.6043 | 0.0004 |
B | Factory Finished Can Height | 168.00 | 0.25 | 6.614 | 0.010 |
C | Dome Depth | 10.92 | 0.13 | 0.430 | 0.005 |
D | Neck Plug Diameter | 52.40 | 0.13 | 2.063 | 0.005 |
E | Flange Diameter | 56.94 | max | 2.242 | max |
F | Stand Diameter | 48.01 | ref | 1.890 | ref |
G | Flange Width | 2.10 | 0.20 | 0.083 | 0.008 |
H | Over Flange Radius | 1.55 | ref | 0.061 | ref |
I | Flange Angle | 0-7 | deg | 0-7 | deg |
J | Seaming Clearance | 3.05 | min | 0.120 | min |
K | Neck Angle | 30.0 | deg | 30.0 | deg |
L | Neck Height | 18.16 | ref | 0.715 | ref |
1 | Dome Reversal Pressure (min) | 6.32 | Bar | 93 | PSI |
2 | Axial Load Strength (min) | 85 | KG | 834 | N |
3 | Freeboard | 14 | ref | 0.55 | ref |
4 | Brimful Capacity (ml) | 537 | 3 | 537 | 3 |

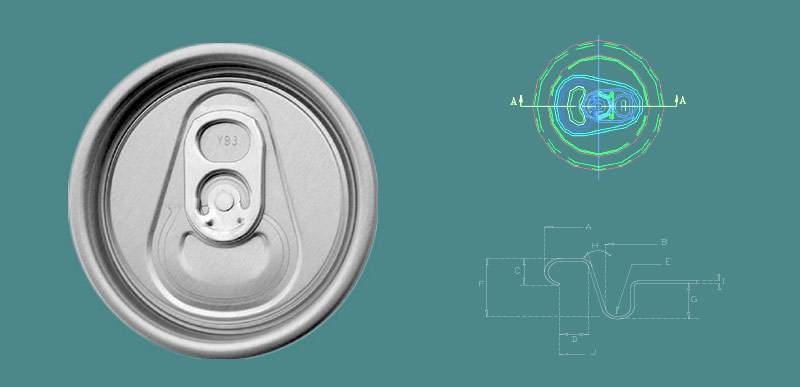

Item | Characteristic | Specification+Tolerances |
---|---|---|
A | Outer Curl Diameter | 56.99 ± 0.25 |
B | Countersink Diameter | 46.55 Reference |
C | Curl Height | 2.03 ± 0.15 |
D | Curl Opening | 2.72 Minimum |
E | Countersink Radius | 0.43 Reference |
F | Countersink Depth | 6.60 ± 0.15 |
G | Panel Height | 2.36 Reference |
H | Chuck Wall Angle | 12 Degree |
I | Inside Curl Diameter | 55.48 Minimum |
1 | Material | 0.224 – 0.226 |
2 | Buckle Strength | 620 KPa Minimum |
3 | Internal Lacquer Type | PVC Free |
4 | External Lacquer Type | Epoxy |

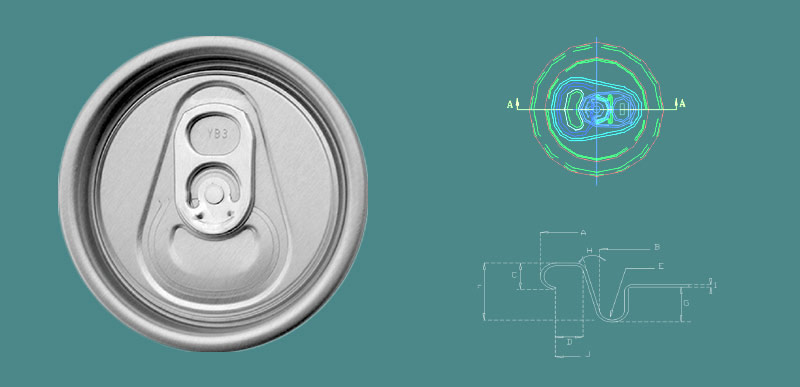

Item | Characteristic | Specification+Tolerances |
---|---|---|
A | Outer Curl Diameter | 56.99 ± 0.25 |
B | Countersink Diameter | 46.55 Reference |
C | Curl Height | 2.03 ± 0.15 |
D | Curl Opening | 2.72 Minimum |
E | Countersink Radius | 0.43 Reference |
F | Countersink Depth | 6.60 ± 0.15 |
G | Panel Height | 2.36 Reference |
H | Chuck Wall Angle | 12 Degree |
I | Inside Curl Diameter | 55.48 Minimum |
1 | Material | 0.224 – 0.226 |
2 | Buckle Strength | 620 KPa Minimum |
3 | Internal Lacquer Type | PVC Free |
4 | External Lacquer Type | Epoxy |

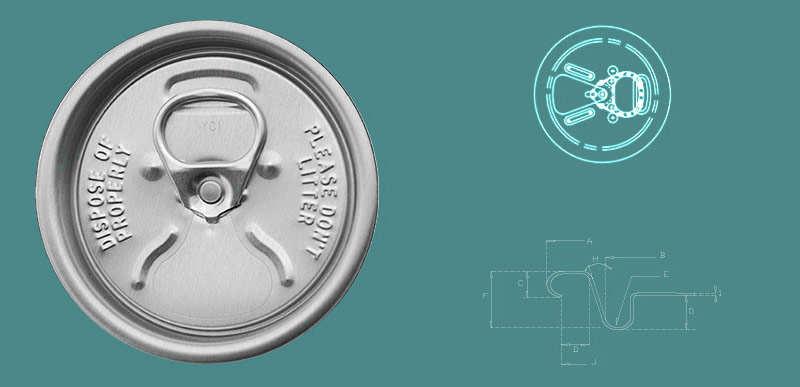

Item | Characteristic | Specification+Tolerances |
---|---|---|
A | Outer Curl Diameter | 59.44 ± 0.25 |
B | Countersink Diameter | 48.59 Reference |
C | Curl Height | 2.11 ± 0.15 |
D | Curl Opening | 2.72 Minimum |
E | Countersink Radius | 0.50 Reference |
F | Countersink Depth | 6.86 ± 0.15 |
G | Panel Height | 2.36 Reference |
H | Chuck Wall Angle | 12 Degree |
I | Inside Curl Diameter | 57.66 Minimum |
1 | Material | 0.224 – 0.226 |
2 | Buckle Strength | 620 KPa Minimum |
3 | Internal Lacquer Type | PVC Free |
4 | External Lacquer Type | Epoxy |

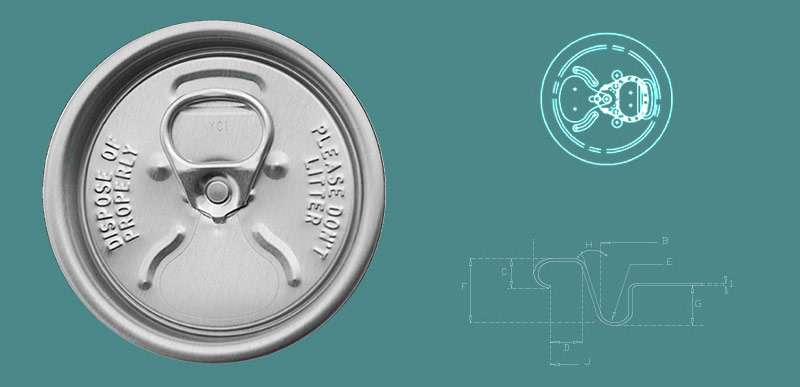

Item | Characteristic | Specification+Tolerances |
---|---|---|
A | Outer Curl Diameter | 59.44 ± 0.25 |
B | Countersink Diameter | 48.59 Reference |
C | Curl Height | 2.11 ± 0.15 |
D | Curl Opening | 2.72 Minimum |
E | Countersink Radius | 0.50 Reference |
F | Countersink Depth | 6.86 ± 0.15 |
G | Panel Height | 2.36 Reference |
H | Chuck Wall Angle | 12 Degree |
I | Inside Curl Diameter | 57.66 Minimum |
1 | Material | 0.224 – 0.226 |
2 | Buckle Strength | 620 KPa Minimum |
3 | Internal Lacquer Type | PVC Free |
4 | External Lacquer Type | Epoxy |
